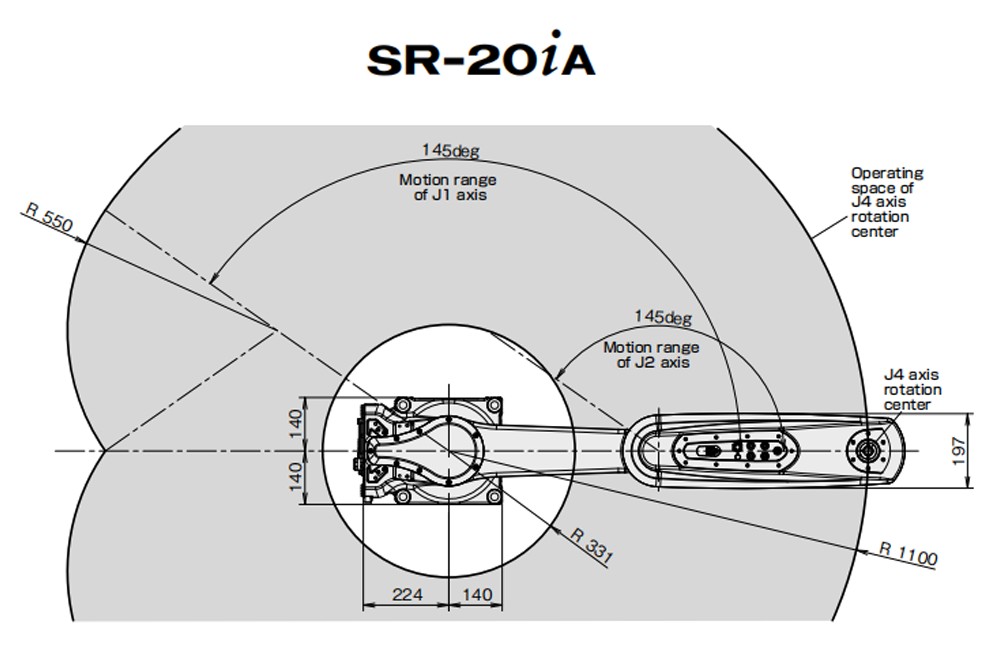

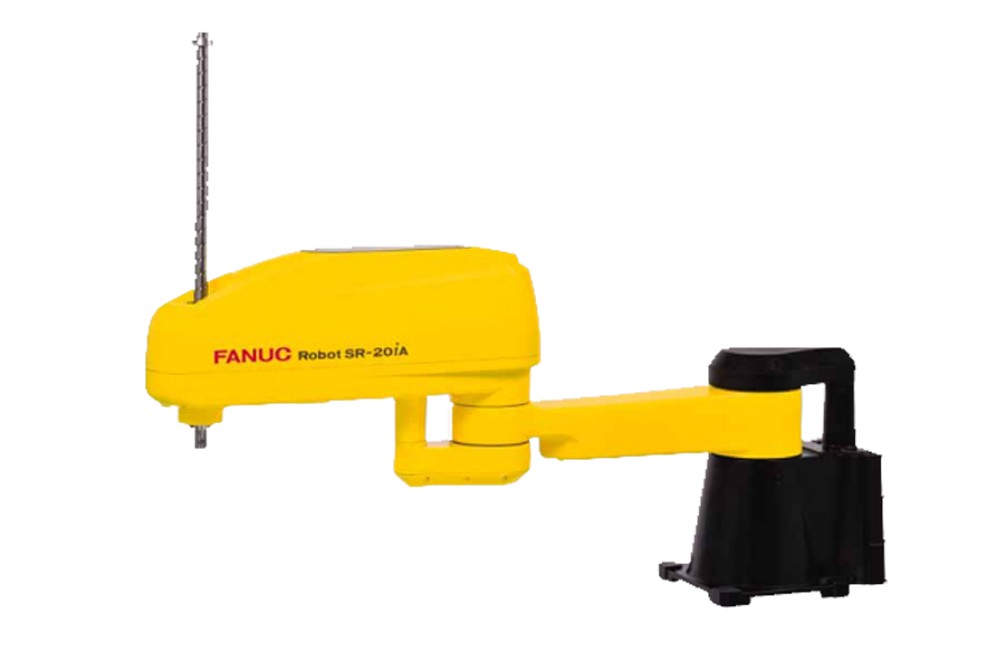

In order to help users in different industries to better improve productivity and flexibility of the production process, FANUC relaunched a new SCARA robot - SR-20iA. 20kg handling mass, arm span of 1100mm SR-20iA, in inheritance of FANUC SCARA series high compactness and high action performance of FANUC SCARA series, at the same time with the characteristics of high load, can be said to be the representative of "more fast and save".

FANUC SCARA robot arm advantages.

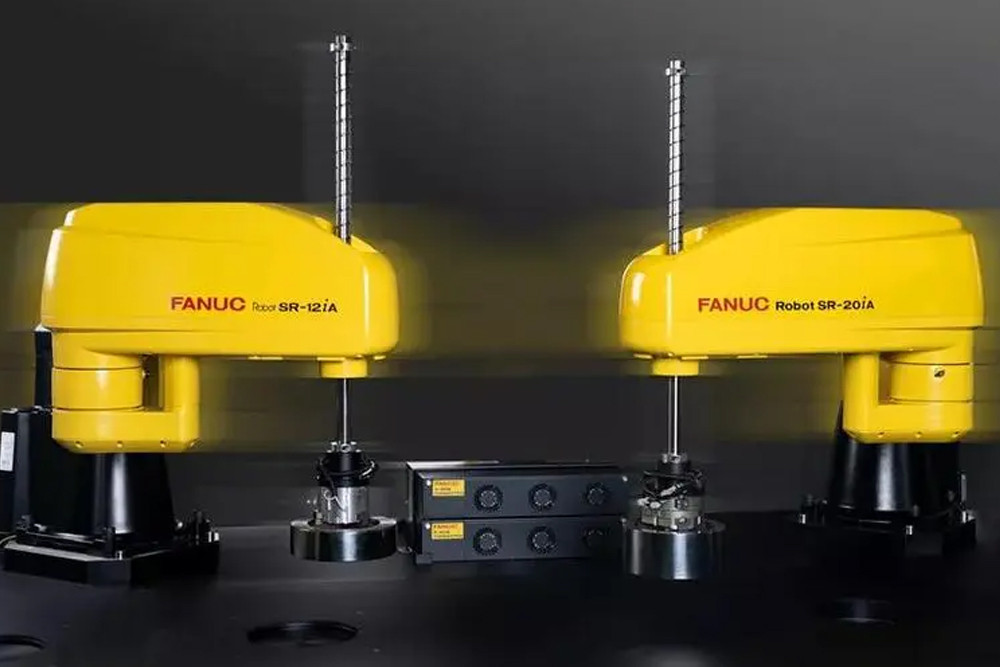

A variety of scenarios: SR-20iA and the previous model SR-3iA, SR-6iA, SR-12iA, compared to the quality of handling, reachable radius increased significantly, in a broader area to move heavier workpieces, more application scenarios, to more widely meet the needs of customers in different industries.

Fast action: The SR-20iA is a robot developed for industries with compact space, large loads and high beat requirements, and has high handling efficiency. With high rigidity and the adopted vibration damping control technology, the SR-20iA can achieve stable and fast movements even when handling heavy loads of 20kg.

Smart and easy to use: The newly developed tutorial interface allows users to easily tutor the robot on a PC or tablet, making it even more user-friendly. It is also equipped with the simple and easy-to-use iRPickTool software, which facilitates the debugging and maintenance of vision tracking.

Space saving: The robot comes with the R-30iB Compact Plus compact control cabinet, which can be placed directly on a standard 19" rack. The control cabinet can be placed in stacks as needed to maximize and streamline the space layout.

In addition, water and dust resistance can be achieved by selecting bellows and gasket-type options that protect the lift shaft at the front of the arm. Also available is a model with an epoxy paint coating that has excellent chemical resistance. It can be used without worry in the environment where cutting oil and chips are flying.

FANUC SCARA robot with a complete product lineup and good ease of use to meet the wide range of customer needs, for consumer electronics, automotive parts, lithium, photovoltaic, plastics, food and beverage, including many industries to provide high-speed and accurate picking, placing, assembly, testing and inspection and packaging and other operational processes to help improve customer productivity.
