FEATURES

●M-410iB and M-410ic are palletizing robots which contribute to the robotization of the palletizing system.

●Suitable robot models can be selected according to the work pieces.

Pedestal type base :

The controller can be placed under the pedestal. It eliminates cabling at installation and saves the installation space.

Compact base :

The base minimizes the robot maximum height. It is suitable for low celling location or for integrating into a manufacturing system.

●M-410iB/700. M-410iC/185. /315, /500 have the hollow wrist that enables easy wiring t如o a gripper.

●Advanced intelligent functions are available as an option,such as iRVision (integrated vision).

Applications:

  1. Loosening, stacking, picking, fetching of small workpieces

  2. Polishing of shell workpieces

Case:










FANUC Robot M-410iC/110/185/315/500
Controlled axes4
Max. payload at wrist110kg185kg315kg500kg
Motion range (X, Y)2403mm, 2238mm3143mm, 2958mm
Repeatability±0.05mm
Mass1030kgPedestal type 1600kg
(Note: Controller mass 120kg is included.)
No pedestal 1330kg
(Note: Controller mass 120kg is not included.)		Pedestal type 2410kg
(Note: Controller mass 120kg is included.)
No pedestal 1910kg
(Note: Controller mass 120kg is not included.)
InstallationFloor
Matching controller / Input power source capacityR-30iB Plus (A-, B-cabinet) / 15kVAR-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA
ApplicationHandling



FANUC Robot M-410iB/140H/700
Controlled axes54
Max. payload at wrist140kg700kg
Motion range (X, Y)2850mm, 3546mm3143mm, 2958mm
Repeatability±0.05mm
Mass1200kg2700kg
(Note: Controller mass 120kg is included.)
InstallationFloor
Matching controller / Input power capacityR-30iB/R-30iB Plus (A-, B-cabinet) / 15kVA
ApplicationHandling


Related Suggestion

Pictures

‹

›

‹

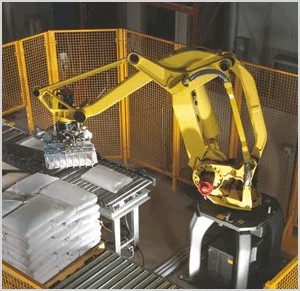

  • Palletizing Robot

›
