| M-10iA M-20iA | M-10iD M-20iD | M-10iB | |

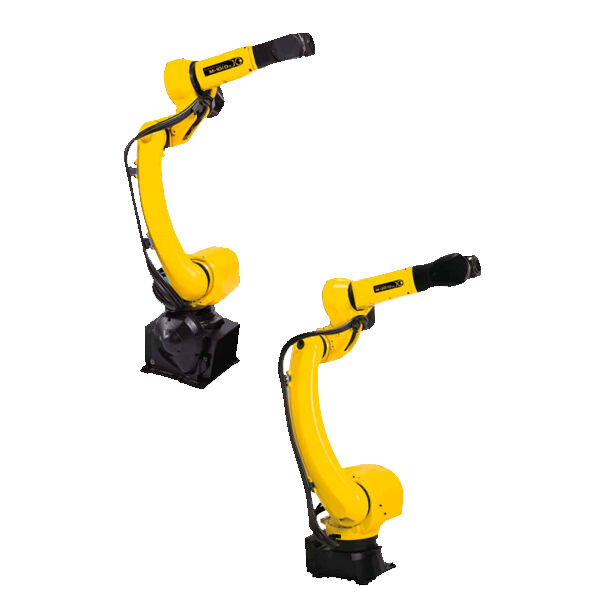

| Feature | FANUC Robot M-10iA / M-20iA is a small payload handling robot whose payload is 7 to 35kg. ●Two wrist types are available. Hollow wrist realizes the user cable easy wiring. High inertia wrist is appropriate for large work piece handling. ●Standard arm, short arm and long arm are available for variable working area. ●High rigidity arm and advanced servo technology enable to increase acceleration performance. This decreases cycle time and realizes high productivity. ●Various intelligent functions with iRVision (integrated vision) and force sensor are available. | FANUC Robot M-10iD / M-20iD is a cable integrated small payload handling robot. ●The unique gear drive mechanism realizes the high inertia and the slim arm of the cable integrated robot. ●The cables and tubes backside the tool control box can be integrated in the enlarged J1 hollow tube. ●Various cables and tubes using for hand control can be integrated in the J3 arm due to the enlarged J4 and J6 hollow tubes. The tool control box can be compactly mounted backside of the J3 arm. ●Higher rigidity of the arm provides high speed and high accuracy of the robot motion. It can enhance the productivity of the system. ●ff-line teaching by ROBOGUIDE (Option) reduces touch-up cost. ●Various intelligent functions with iRVision (integrated vision) and the force sensor are available. | FANUC Robot M-20iB is a middle size handling robot with 25 to 35kg payload capacity. ●Three models are available to meet a variety of applications. - FANUC Robot M-20iB/25. This is a high speed general-purpose robotsuitable for various applications, such as handling, assembling, and de-burring. FANUC Robot M-20iB/25C This is a robot available for clean environment suitable for handling materials requiring cleanliness, such as food and pharmacy. FANL JC Robot M-20iB/35S This is a compact robot suitable for working in a small space. ●Cables and motors are not exposed. IP67 sealed structure can adapt to various environment. ●Connectors on the user interface don't protrude and the cables from them can be tightly routed along the arm. The slim arm does not interfere with peripheral equipment. ●Advanced intelligent functions are available as an option, such as iRVision (integrated vision). |
| RM-100iC RM-120iC | RM-100iD RM-120iD | ||

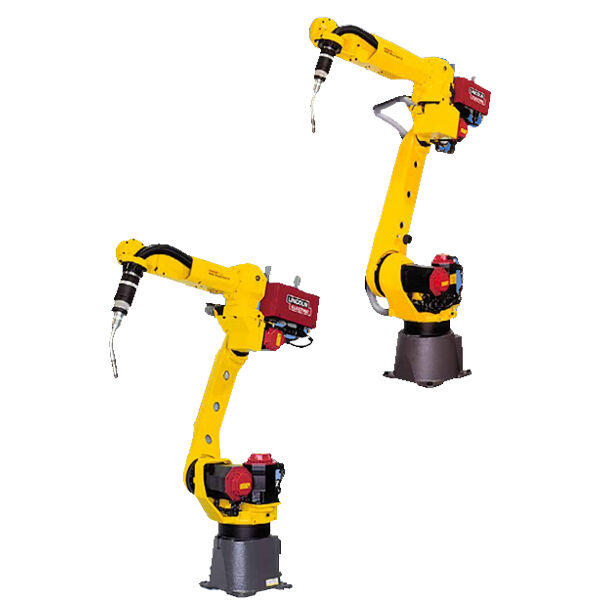

| FANUC Robot ARC Mate 100iC / 120ic is the cables integrated arc welding robot. ●ARC Mate 100iC Standard type, short arm type (12S), long arm type (7L) and ARC Mate 120iC Standard type, long arm type (12L) are available for various application adaptations. ●High rigidity arm and advanced servo technology enable to increase acceleration performance. This decreases cycle time and realizes high productivity. ●The unique drive mechanism in wrist axis realizes the slim arm in torch cable integrated robot. ●Smooth hand cable routing and easy maintenance by cantilevered fore arm provides excellent cable management with stable wire feeding. ●Thanks to stable hand cable management, off-line teaching func tion by ROBOGUIDE (Option) reduces teaching cost. ●V arious inteligent functions with iRVision (integrated vision) and Coordinated motion with Positioner are available. | FANUC Robot ARC Mate 100iD / 120iD is the . cables integrated arc welding robot with an enhanced dress-out ability. The robot is available to meet a variety of operating spaces. ●The unique gear drive mechanism realizes the slim arm of the torch cable integrated robot. ●Welding cable utilities backside the wire feeder can be integrated in the enlarged J1 hollow tube. It makes system setup easy. ●Not only the torch cable but also the sensor cable can be integrated in the J3 arm due to the enlarged J4 and J6 hollow tubes. The wire feeder can be compactly mounted backside of the J3 arm. ●Higher rigidity of the arm provides high speed and high accuracy of the robot motion. It can enhance the productivity of the system. ●Off-line teaching by ROBOGUIDE (Option) reduces touch-up cost. ●Various inteligent functions with iRVision (integrated vision) and coordinated motion with the positioner are available. | ||
| M-710iC | M-800iA/60 | M-1000iA | |

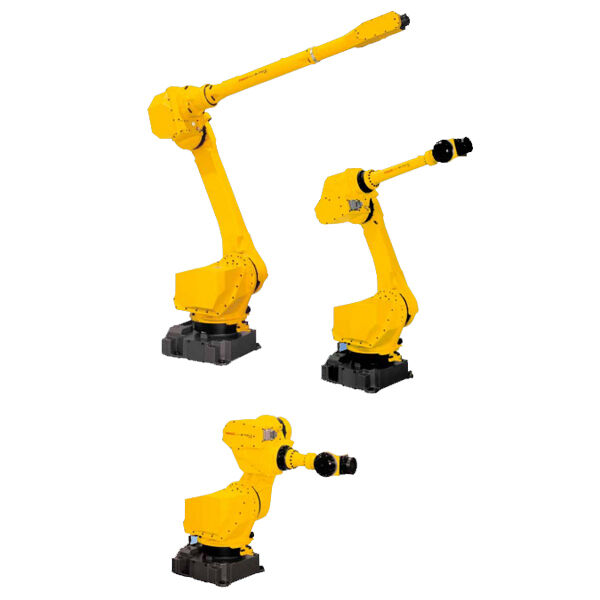

| FANUC Robot M-7 10ic is a medium payload handling robot series with the capacity of 12kg - 70kg . ( Eight models are available to meet a variety of applications. - FANUC Robot M-7 10iC/45M, /50, /70 Wide motion envelop and large wrist load capacity are enough to handle a large panel. M-7 10iC/45M : Payload capacity 45kg M-7 10iC/50 : Payload capacity 50kg M-7 10iC/70 : Payload capacity 70kg FANUC Robot M-7 10iC/50S This model has a compact body suitable for narrow area operation. (Payload capacity 50kg) FANUC Robot M-7 10ic/ 12L, /20L, /20M Long reach and high motion performance are suitable for various applications, such as handling, sealing and arc welding. M-7 10iC/12L : Payload capacity 12kg (Hollow wrist) M-7 10iC/20L : Payload capacity 20kg M-7 10iC/20M : Payload capacity 20kg FANUC Robot M-7 10iC/50H This modelis a 5 axes type robot that corresponds to the high speed transferring. The ceilling mount realizes a compact handling system. (Payload capacity 50kg) ( The full cover realizes IP6 7-equivalent resistance to severe environmental conditions (dust and dips). It's reliable in various applications, such as load / unload for machined parts, de-burring and die cast loading. | The FANUC Robot M-800iA/60 is a high accuracy robot with 60kg payload capacity. ●This robot has significantly enhanced rigidity compared to the conventional robots in the same class by the mechanical design with emphasis on the rigidity. ●iRCalibration Signature, a highly accuracy calibration technology, compensates for manufacturing deviations from design values and mechanical torsion due to gravity, etc. to provide higher absolute position accuracy. ●FANUC's new motion control technology has significantly enhanced the circular and linear path accuracy to be within土0. 1mm. ●This robot is ideal for the applications that require high path accuracy, such as 3D laser cutting and water jet cutting that take advantage of the 6 degrees of freedom of the robot. | The FANUC Robot R-1000iA is a compact and high-speed robot having a wrist capacity of 80kg to 130kg. Compact mechanical unit and outstanding motion performance are suitable for handling, spot welding and palletizing in dense layout work cells. ●5 models are available to meet a variety of applications. - FANUC Robot R-1000iA/80F, /100F, /130F These robots have a large operating space (including its rear and downward side) and can also be installed upside down. The slimmest design in width makes it possible to locate the robot close to neighboring robots, fixtures and workpieces. High-speed approach from home to working position and fast positioning in a short pitch motion can minimize a throughput. - FANUC Robot R-1000iA/80H This model is 5 axes type robot that is suitable for the high speed transfer. Compact mechanical unit can reduce installation space in factories. - FANUC Robot R-1000iA/ 120F-7B This model is 7 axes type robot that has an axis for changing the J2 arm length in addition to the 6 axes in the conventional robot. This robot contributes to line size reduction by ensuring a larger operating space when located close to a workpiece. ●Latest intelligent functions with iRVision (integrated vision) and force sensor are available |
| FANUC Robot ARC Mate 100iD | /16S | ARC Mate 100iD | /10L | /8L | |
| FANUC Robot M-10iD | M-10iD/12 | ||||
| Controlled axes | 6 | ||||
| Max. payload at wrist | 16kg | 12kg | 10kg | 8kg | |
| Motion range (X, Y) | 1103mm, 1977mm | 1441mm, 2616mm | 1636mm, 3006mm | 2032mm, 3762mm | |
| Repeatability | ±0.02mm | ±0.03mm | |||
| Mass (without stand) | 145kg | 150kg | 180kg | ||
| Installation | Floor, Upside-down, Angle | ||||
| * Floor, Upside-down for 4 brake type | |||||
| Matching controller / Input power source capacity | R-30iB Plus (A-, B-cabinet), R-30iB Mate Plus (standard) / 2kVA | ||||
| Application | Handling | x | |||
| Assembling | x | ||||
| Arc welding | x | ||||
| Sealing | x | ||||
| Others | Mold handling, Deburring | ||||
| FANUC Robot ARC Mate 100iC | /12S | /12 | /7L | /8L | - | - | |
| FANUC Robot M-10iA | /10MS | /10M | |||||
| Controlled axes | 6 | ||||||
| Max. payload at wrist | 12kg | 7kg | 8kg | 10kg | |||
| Motion range (X, Y) | 1098mm, 1872mm | 1420mm, 2504mm | 1632mm, 2930mm | 2028mm, 3709mm | 1101mm, 1878mm | 1422mm, 2508mm | |
| Repeatability | ±0.03mm | ±0.035mm | ±0.03mm | ||||
| Mass | 130kg | 135kg | 150kg | 130kg | |||
| Installation | Floor, Upside-down, Angle | ||||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 2kVA | ||||||
| Application | Handling | x | x | x | x | x | x |
| Assembling | x | x | x | x | x | x | |
| Arc welding | x | x | x | x | x | x | |
| Sealing | x | x | x | x | x | x | |
| Others | Mold handling, Deburring | ||||||
| FANUC Robot ARC Mate 120iD | ARC Mate 120iD | /35 | /12L | |
| FANUC Robot M-20iD | M-20iD/25 | |||
| Controlled axes | 6 | |||
| Max. payload at wrist | 25kg | 35kg | 12kg | |
| Motion range (X, Y) | 1831mm, 3461mm | 2272mm, 4343mm | ||
| Repeatability | ±0.02mm | ±0.03mm | ||
| Mass (without stand) | 250kg | |||
| Installation | Floor, Upside-down, Angle | |||
| Matching controller / I nput power source capacity | R-30iB Plus (A-, B-cabinet), R-30iB Mate Plus (standard) / 3kVA | |||
| Application | Handling | x | ||
| Assembling | x | |||
| Arc welding | x | |||
| Sealing | x | |||
| Others | Mold handling, Deburring | |||
| FANUC Robot ARC Mate 120iC | ARC Mate 120iC | /12L | - | - | |
| FANUC Robot M-20iA | M-20iA | /20M | /35M | ||
| Controlled axes | 6 | ||||
| Max. payload at wrist | 20kg | 12kg | 20kg | 35kg | |
| Motion range (X, Y) | 1811mm, 3275mm | 2009mm, 3672mm | 1813mm, 3278mm | ||
| Repeatability | ±0.03mm | ||||
| Mass | 250kg | 252kg | |||
| Installation | Floor, Upside-down, Angle | ||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 3kVA | ||||
| Application | Handling | x | x | x | x |
| Assembling | x | x | x | x | |
| Arc welding | x | x | x | x | |
| Sealing | x | x | x | x | |
| Others | Mold handling, Deburring | ||||
| FANUC Robot M-20iB | /25 | /25C | /35S | |
| Controlled axes | 6 | |||
| Max. payload at wrist | 25kg | 35kg | ||
| Motion range (X, Y) | 1853mm, 3345mm | 1445mm, 2591mm | ||
| Repeatability | ±0.02mm | |||
| Mass | 210kg | 205kg | ||
| Installation | Floor, Upside-down, Angle | |||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 3kVA | R-30iB Plus (A-, B-cabinet), R-30iB Mate Plus (standard) / 3kVA | ||
| Application | Handling | x | x | x |
| Assembling | x | x | x | |
| Arc welding | x | - | x | |
| Sealing | x | - | x | |
| Clean room | - | x | - | |
| Others | Mold handling, Deburring | - | Mold handling, Deburring | |
| FANUC Robot M-710iC | /45M | /50 | /70 | /12L | /20L | /20M | /50S | /50H | |
| Controlled axes | 6 | 5 | |||||||
| Max. payload at wrist | 45kg | 50kg | 70kg | 12kg | 20kg | 20kg | 50kg | 50kg | |
| Motion range (X, Y) | 2606 mm, 4575 mm | 2050mm, 3545mm | 3123 mm, 5609 mm | 3110 mm, 558 3mm | 2582 mm, 4609 mm | 1359 mm, 2043 mm | 2003mm, 3451mm | ||
| Repeatability | ±0.06 mm | ±0.03 mm | ±0.04 mm | ±0.06mm | ±0.03mm | ||||
| Mass | 570kg | 560kg | 540kg | 530kg | 545kg | 540kg | |||
| Installation | Floor, Upside-down, Angle | Floor, Upside-down | |||||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 12kVA | R-30iB/R-30iB Plus (A-, B-cabinet) / 12kVA | |||||||
| Application | Handling | x | x | x | x | x | x | x | x |
| Assembling | x | x | x | x | x | x | x | - | |
| Arc welding | x | x | x | x | x | x | x | - | |
| Sealing | x | x | x | x | x | x | x | - | |
| Spot welding | x | x | x | - | - | - | x | - | |
| Others | Mold handling, Deburring, Laser cutting | - | |||||||
| FANUC Robot M-800iA | /60 | |
| Controlled axes | 6 | |
| Max. payload at wrist | 60kg | |
| Motion range (X, Y) | 2040mm, 3221mm | |
| Repeatability | ±0.015mm | |
| Mass | 820kg | |
| Installation | Floor | |
| Matching controller | R-30iB Plus (A-, B-cabinet) | |
| Input power source capacity | 12kVA | |
| Application | Laser machining | |
| FANUC Robot R-1000iA | /80F | /100F | /130F | /120F-7B | /80H | |
| Controlled axes | 6 | 7 | 5 | |||
| Max. payload at wrist | 80kg | 100kg | 130kg | 120kg | 80kg | |
| Motion range (X, Y) | 2230mm, 3738mm | 2230mm, 3779mm | 2230mm, 3465mm | |||
| Repeatability | ±0.03mm | |||||
| Mass | 620kg | 665kg | 675kg | 790kg | 610kg | |
| Installation | Floor, Upside-down | |||||
| Matching controller | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) | R-30iB/R-30iB Plus (A-, B-cabinet) | ||||
| Input power source capacity | 12kVA | 15kVA | 12kVA | |||
| Application | Handling | x | x | x | x | x |
| Assembling | x | x | x | x | - | |
| Sealing | x | x | x | x | - | |
| Spot welding | x | x | x | x | - | |
