Features:

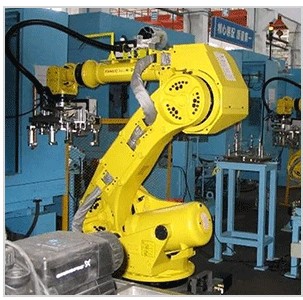

The FANUC Robot R-2000iC is an intelligent robot based on FANUCʼs years of experience and renowned technology. This high performance intelligent robot with

outstanding reliability and cost performance will support your needs in various applications, such as spot welding, material handling and assembly.

● Weight reduction of the mechanical unit and compact robot

● The rigid yet lightweight arm and the advanced motion control technology achieve significantly improved motion performance, allowing for higher productivity.

● Extensive options are available for various processes, including the spot welding solution arm.

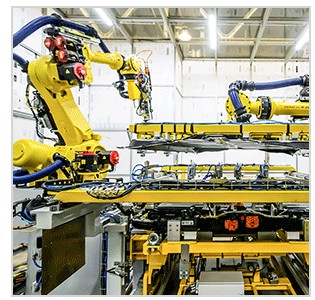

Applications:

Material handling

Welding

Painting

Cases:







FANUC Robot R-2000iC/165F/210F/240F/125L/270F/210L
Controlled axes6
Max. payload at wrist165kg210kg240kg125kg270kg (option:300kg)210kg
Motion range (X, Y)2655mm, 3414mm3100mm, 4304mm2655mm, 3414mm3100mm, 4304mm
Repeatability±0.05mm
Mass (without stand)1090kg1115kg1320kg1350kg
InstallationFloor
Matching controllerR-30iB/R-30iB Plus（A-,B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard)R-30iB/R-30iB Plus (A-,B-cabinet)
Input power source capacity12kVA15kVA
ApplicationHandlingxxxxxx
Assemblingxxxxxx
Sealingxxxxxx
Spot weldingxxxxxx
OthersPress to press handling, Deburring
FANUC Robot R-2000iC/165R/210R/270R/100P/100PH/190S
Controlled axes6
Max. payload at wrist165kg210kg270kg100kg190kg
Motion range (X, Y)3095mm, 4733mm3540mm, 5623mm2040mm, 3170mm
Repeatability±0.05mm±0.03mm
Mass (without stand)1370kg1590kg1470kg1495kg1120kg
InstallationRackFloor, Upside-down
Matching controllerR-30iB/R-30iB Plus (A-,B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard)R-30iB/R-30iB Plus（A-,B-cabinet)R-30iB Plus（A-,B-cabinet)
Input power source capacity12kVA15kVA
ApplicationHandlingxxxxxx
Assemblingxxx--x
Sealingxxx--x
Spot weldingxxx--x
Washing------
OthersMold handling, Press to press handling, Deburring
FANUC Robot R-2000iC/220U/190U/210WE
Controlled axes6
Max. payload at wrist220kg190kg210kg
Motion range (X, Y)2518mm, 3414mm3100mm, 4304mm2450mm, 3415mm
Repeatability±0.05mm±0.10mm
Mass (without stand)1020kg1400kg1180kg
InstallationUpside-downFloor
Matching controllerR-30iB/R-30iB Plus (A-,B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard)R-30iB/R-30iB Plus (A-,B-cabinet)
Input power source capacity15kVA
ApplicationHandlingxx-
Assemblingxx-
Sealingxx-
Spot weldingxx-
Washing--x
OthersMold handling, Press to press handling, Deburring
FANUC Robot R-2000iD/100FH/165FH/210FH
Controlled axes6
Max. payload at wrist100kg165kg210kg
Motion range (X, Y)2605mm, 3315mm
Repeatability±0.05mm
Mass (without stand)1150kg
InstallationFloor
Matching controllerR-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard)
Input power source capacity12kVA
ApplicationHandlingx
Assemblingx
Sealingx
Spot weldingx
OthersMold handling, Press to press handling, Deburring


FANUC Robot M-900iB/360/280L/280/330L/700/400L
Controlled axes6
Max. payload at wrist360kg280kg280kg330kg700kg400kg
Motion range (X, Y)2655mm, 3308mm3103mm, 4200mm2655mm, 3308mm3203mm, 3539mm2832mm, 3288mm3704mm (*), 4621mm
* Wrist motion is restricted when the wrist payload is over 300kg.
Repeatability±0.1mm±0.1mm
Mass1540kg1600kg1700kg1780kg2800kg3150kg
InstallationFloor, Upside-down, AngleFloorFloor
Matching controllerR-30iB/R-30iB Plus (A-, B-cabinet)R-30iB/R-30iB Plus (B-cabinet)
Input power source capacity15kVA18kVA
ApplicationHandlingxxxxxx
Assemblingxxxxxx
Sealingxxxxxx
Spot weldingxxxxxx
OthersMold handling, Press to press handling, Deburring
